Product Specification

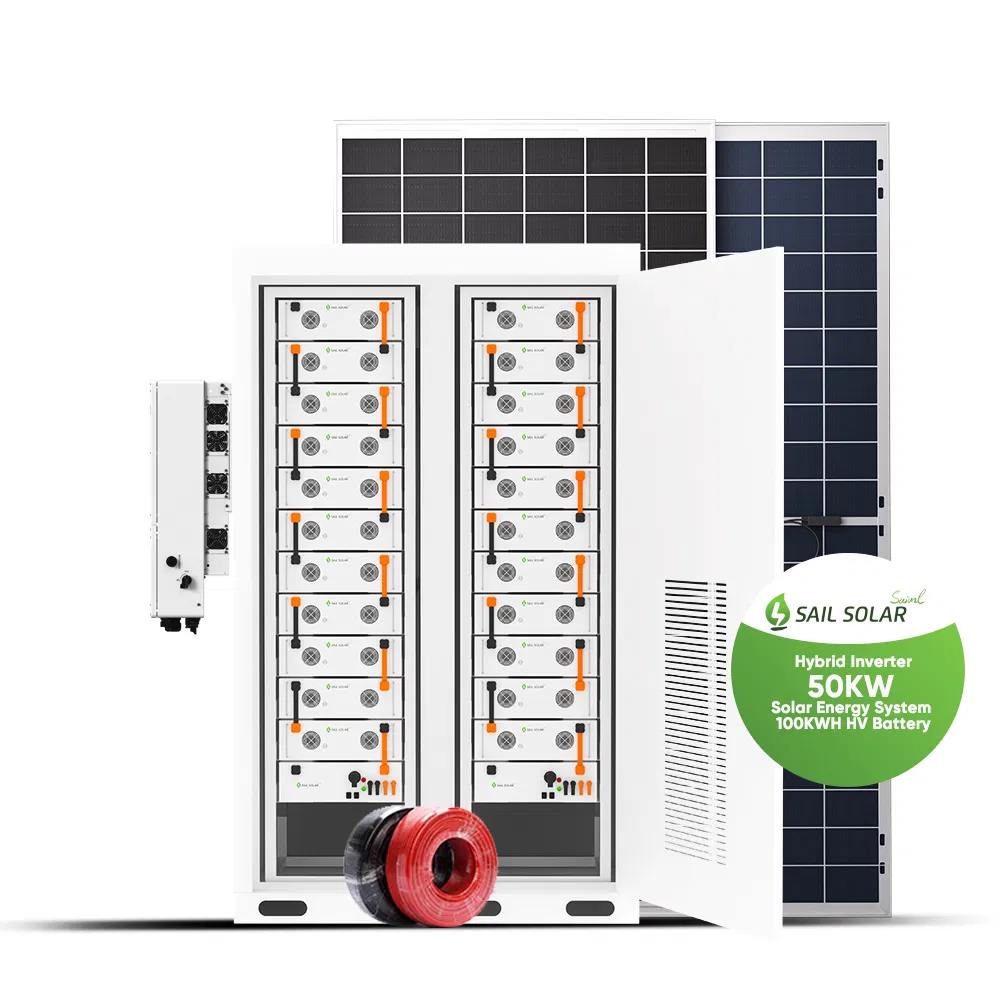

100KW Solar Energy System
| System Components |
| Model |
SAS100KW-HY |

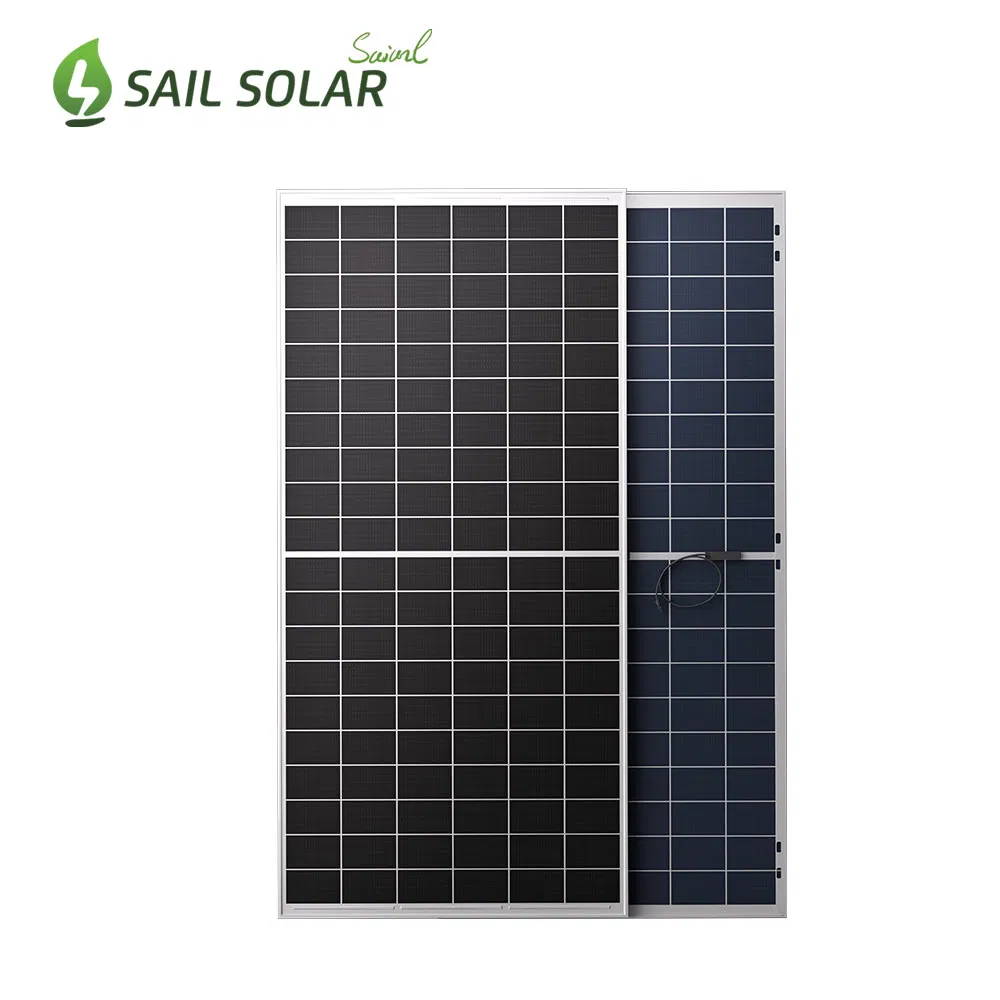

| 590W Solar Panel |
170 pieces |
| Hybrid Inverter |
100KW |
| Lithium Battery |
200KWH Customized Lithium (Lifepo4) Battery Storage System with BMS Monitoring |

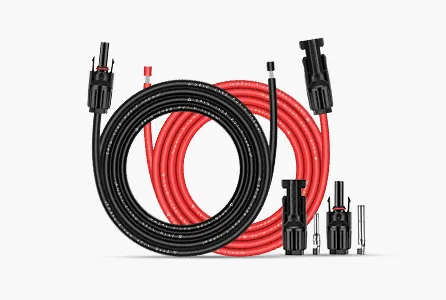

| DC Cable 4mm2 |
300 Meters |
| MC4 Connector |
200 Pairs |
| Mounting System |
Customized for Rooftop or Ground |
| Optional Accessories |
Lightning protection/grounding device, AC/DC Combiner box, AC Cable, Smart Meter |

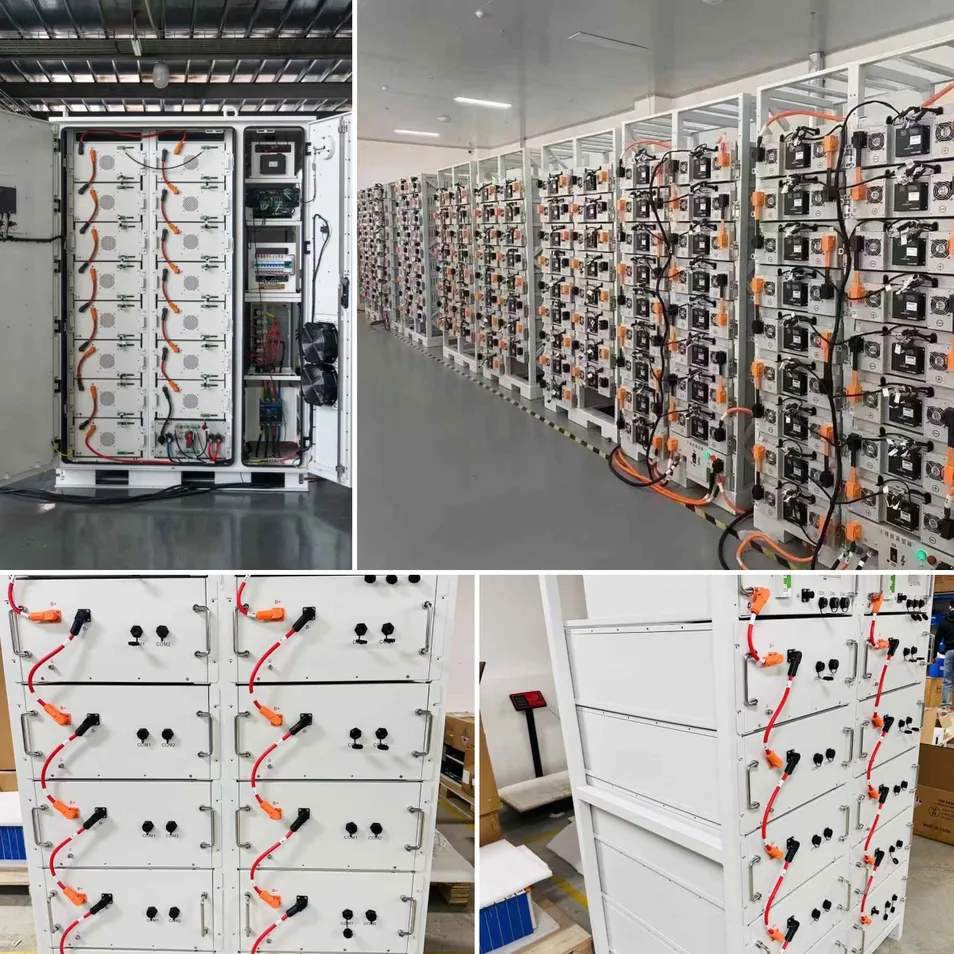

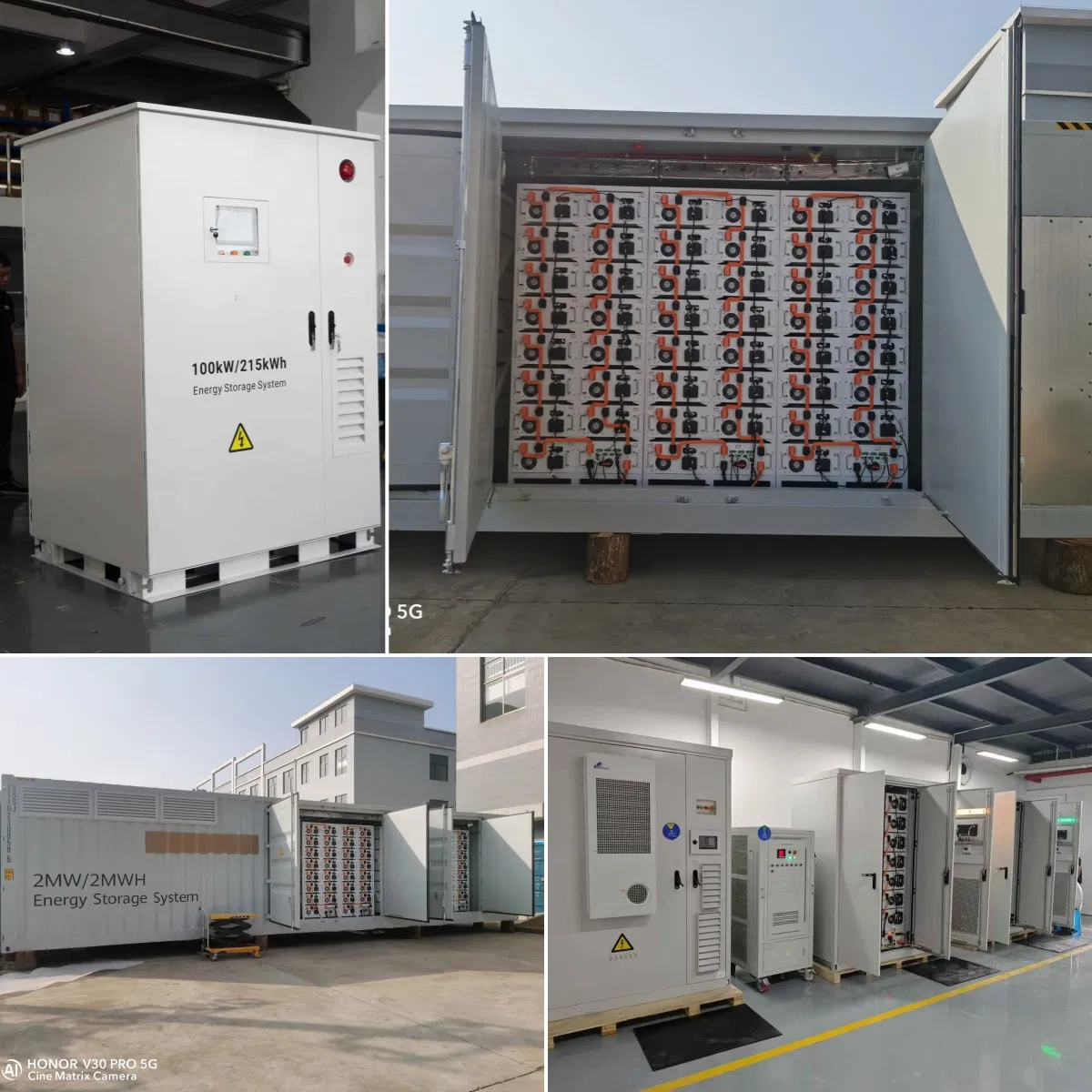

Storage Battery Specification
| Battery Type |
LiFePO4 battery |
| Efficiency of Charge |
99.5%@0.2C |
| Configuration |
14 battery modules+1 BPU(716.8V 280Ah) |
| Energy |
200Kw/h |
| Discharge Cut-Off Voltage(V) |
616 |
| Charge Cut-Off Voltage(V) |
795.2 |
| Recommend Charge/Discharge Current(A) |
100 |
| Max.Charge/Discharge working Current(A) |
200 |
Solar Inverter Specification
| Rated output power |
100 kW |
| Max. apparent output power |
100 kVA |
| Rated grid voltage |
3/N/PE, 220 V / 380 V, 230 V / 400 V |
| Rated grid frequency |
50 Hz / 60 Hz |
| Rated grid output current |
152 A / 144.3 A |
| Power factor |
> 0.99 (0.8 leading - 0.8 lagging) |
| THDi |
< 3% |
| Ingress protection |
IP66 |
Frequently Asked Questions
What components are included in the 100KW Solar Energy Storage System?
The complete system includes 170 pieces of 590W solar panels, a 100KW hybrid inverter, a customized 200KWH LiFePO4 lithium battery storage system with BMS monitoring, mounting brackets, DC/AC cables, MC4 connectors, and optional accessories like combiner boxes and smart meters.

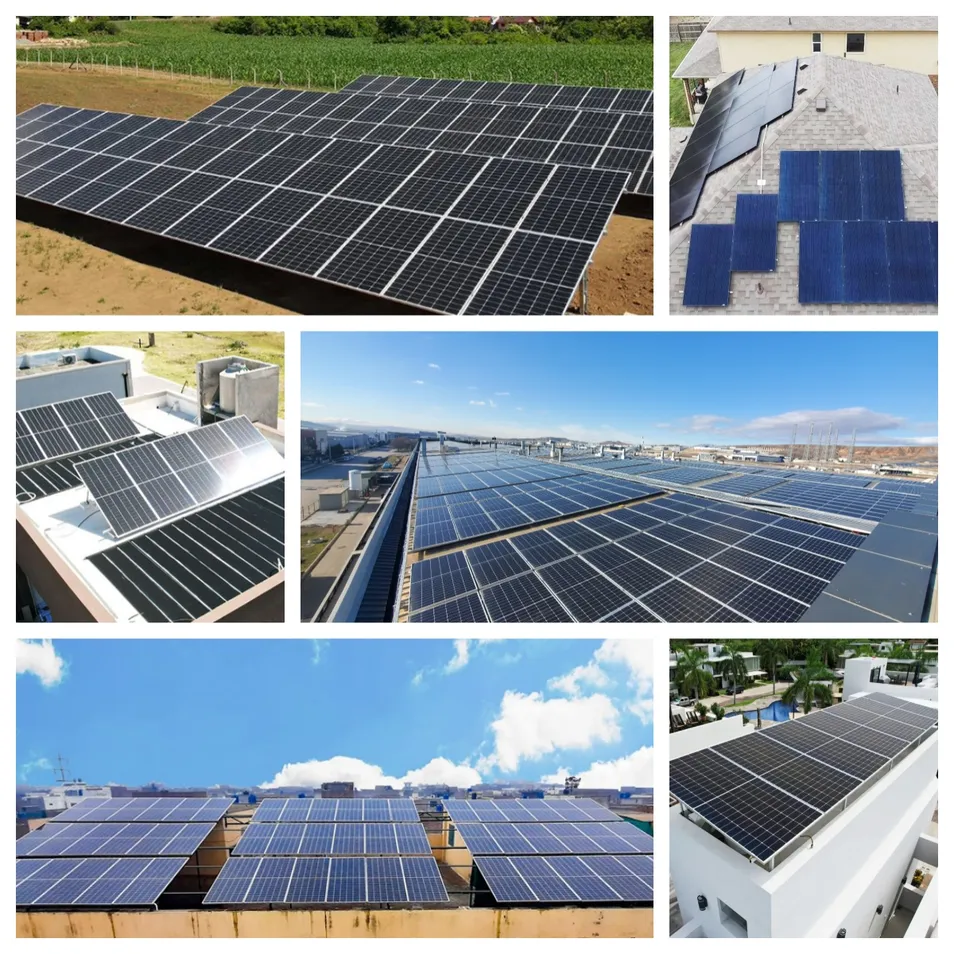

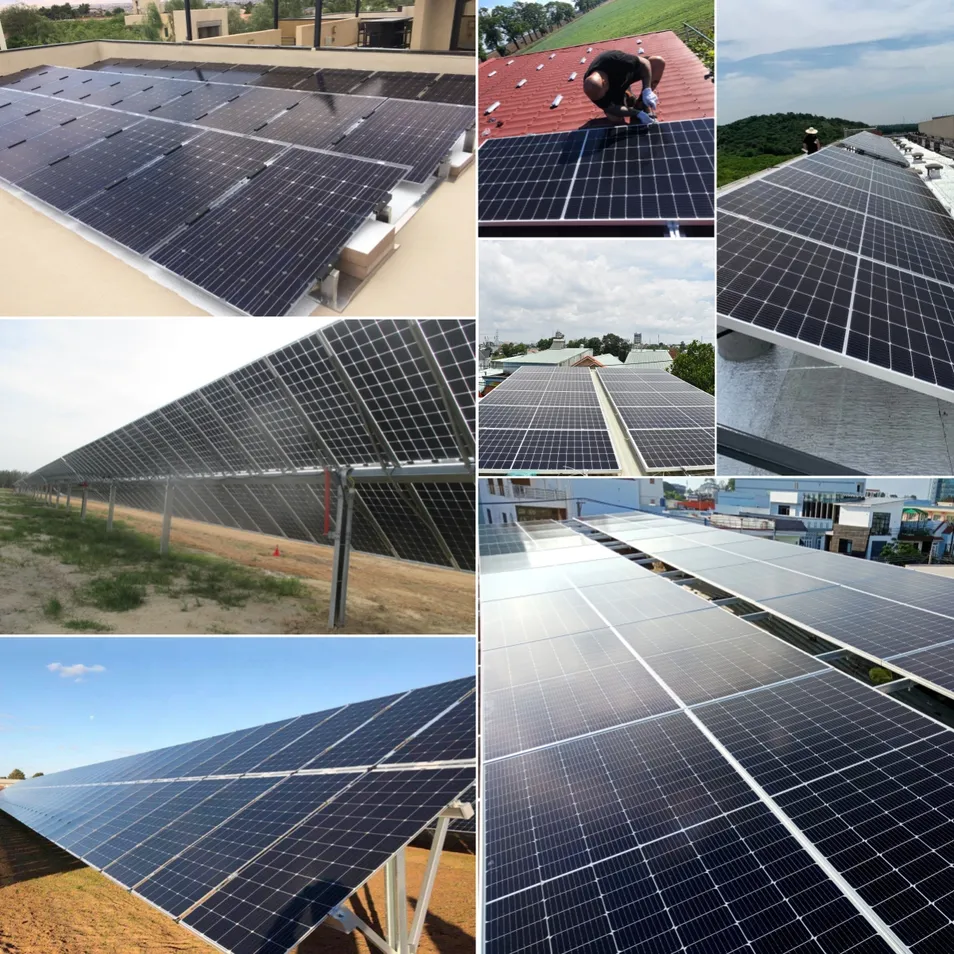

Can the mounting system be customized for different roof types?
Yes, the mounting system is highly customizable. It supports residential pitched roofs, commercial flat roofs, workshop roofs, ground mounting, vertical walls, and car parking structures.
What is the lifespan and cycle count of the lithium battery?
The system utilizes high-quality LiFePO4 battery cells with a built-in BMS, offering more than 6,000 charge/discharge cycles and an outstanding charge efficiency of 99.5% at 0.2C.
Does the hybrid inverter support peak shaving?
Yes, the 100KW hybrid inverter fully supports peak shaving features in both "self-use" and "generator" modes, allowing you to optimize energy usage and reduce utility costs.
How durable is the system against harsh environmental conditions?
The solar panels are PID resistant with high salt and ammonia resistance. The hybrid inverter features an IP66 ingress protection rating, making it highly durable and suitable for outdoor installations.
How is the system packaged for shipping?
All components are securely packed using heavy-duty wooden pallets and robust carton boxes to ensure maximum protection during transit and delivery.
