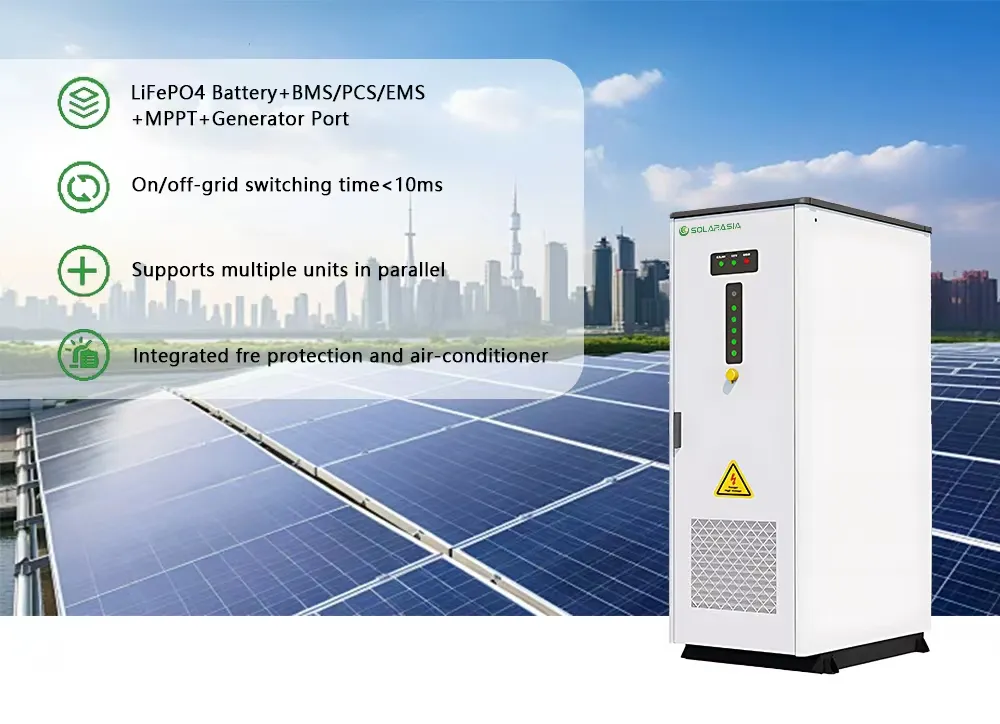

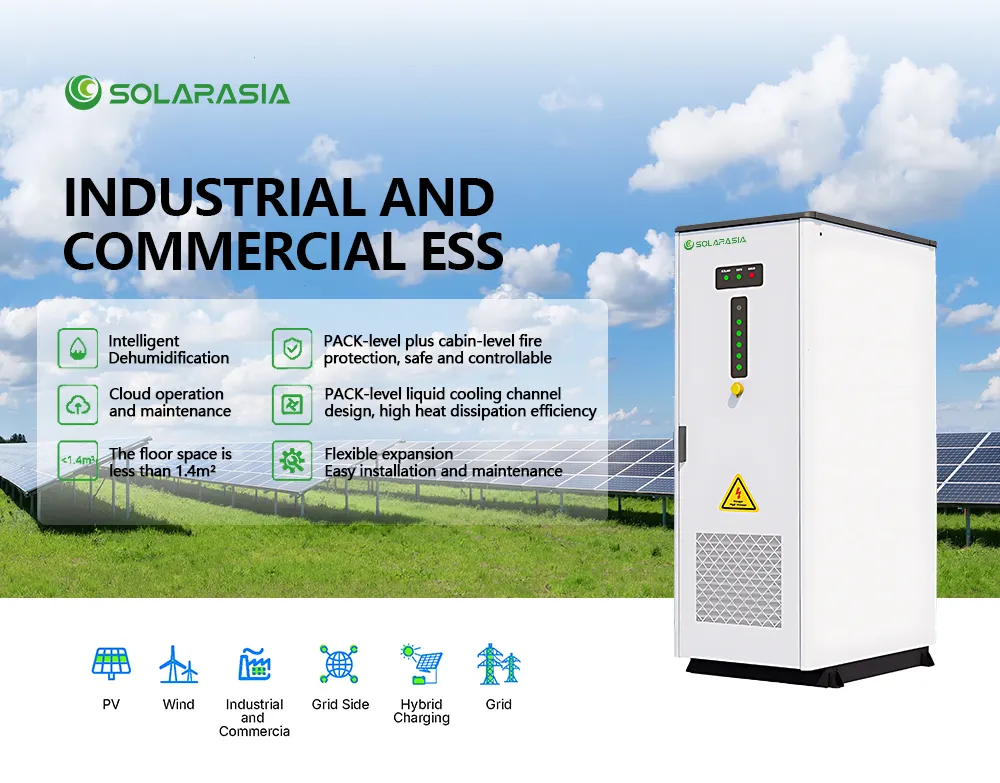

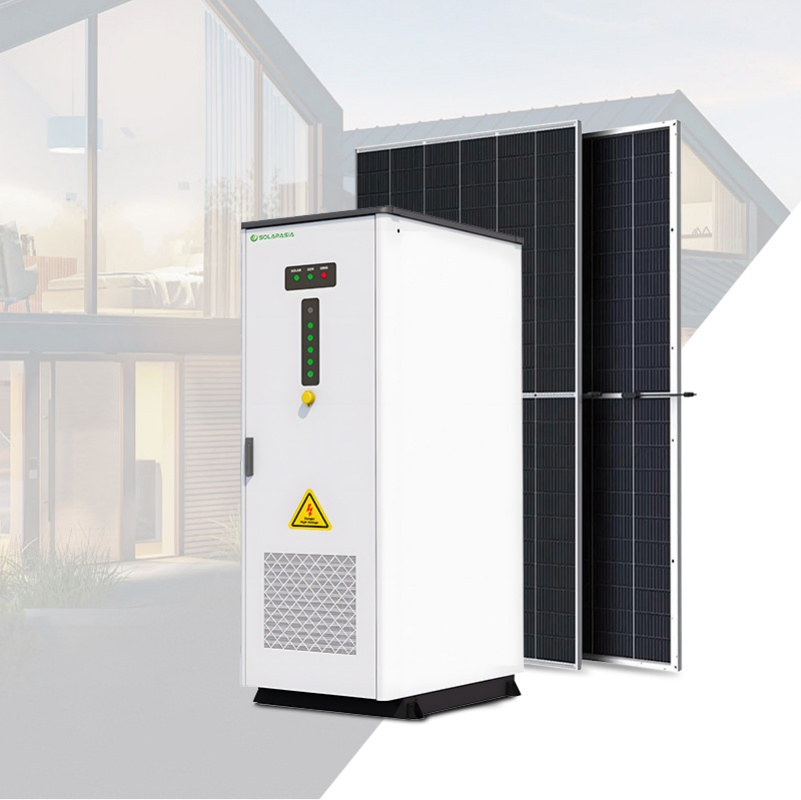

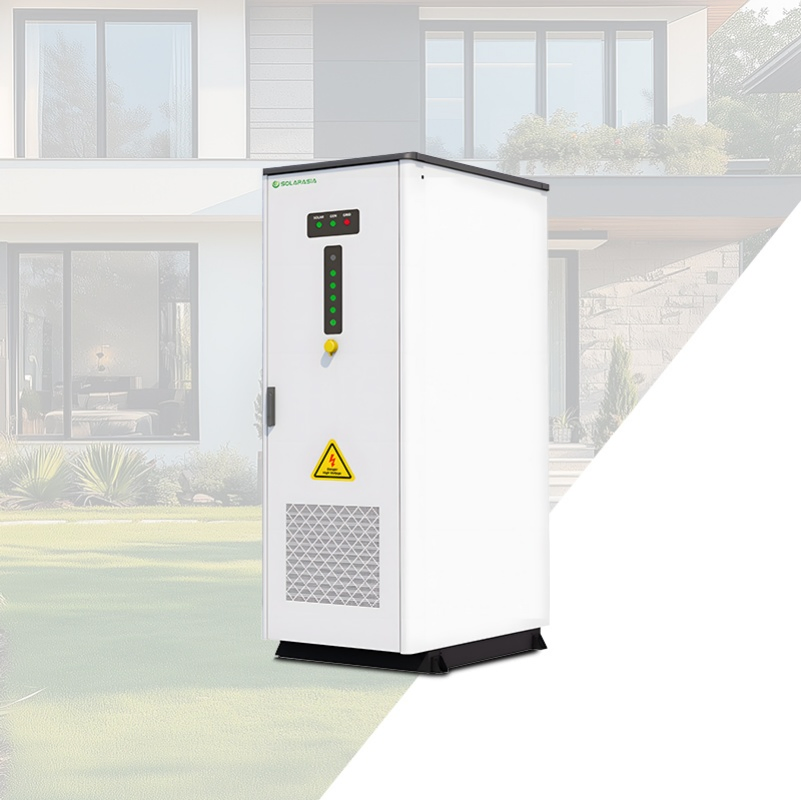

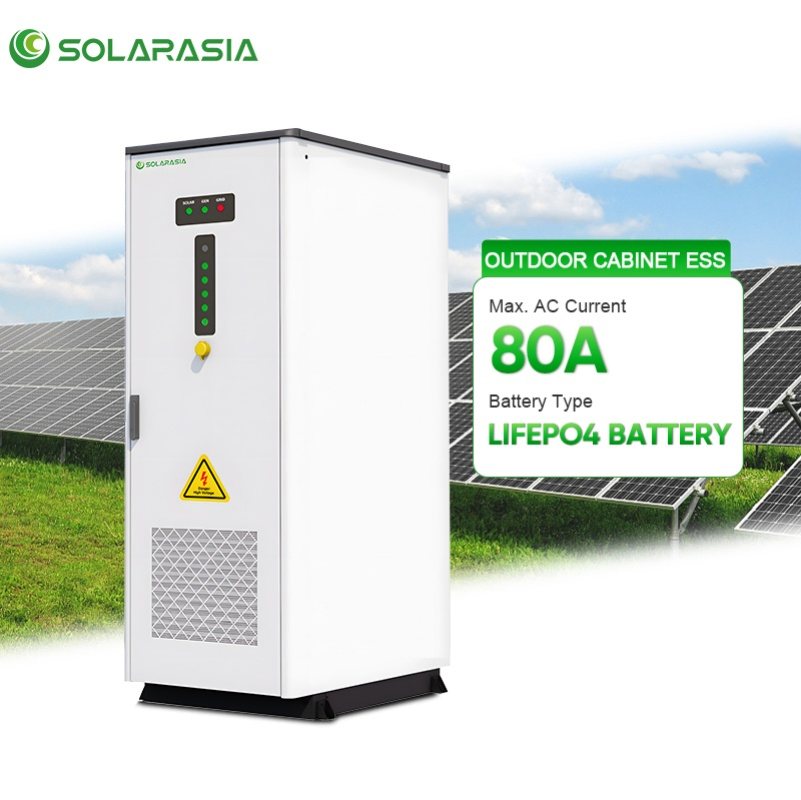

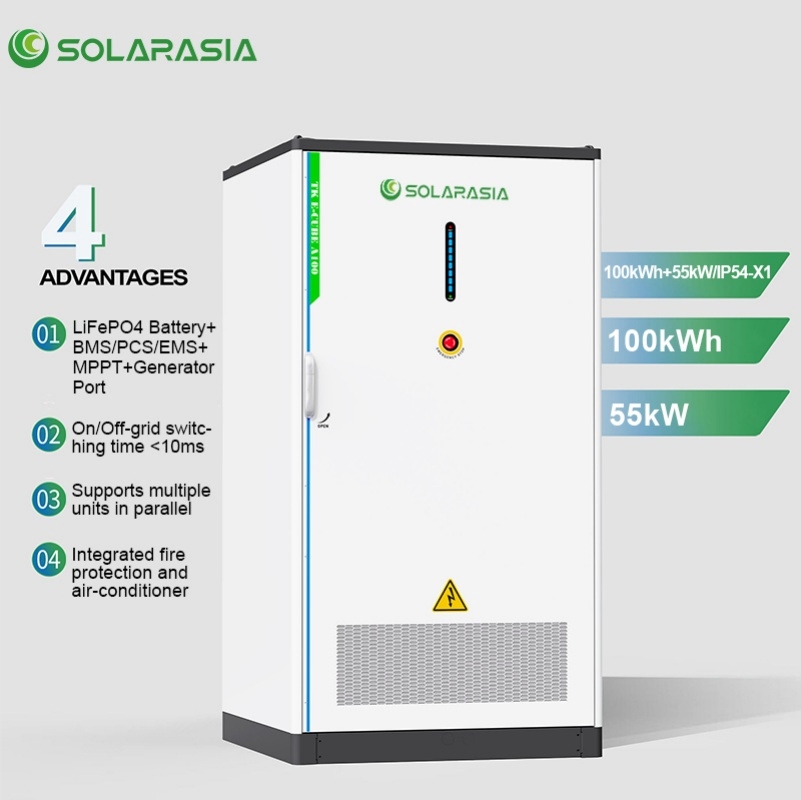

Solar Energy Storage Battery All in One Solar Battery 100kwh 50kw Indoor Lithium Battery System Bess 100kwh Energy Storage Battery Cabinet for Industrial

1 / 5

Solar Energy Storage Battery All in One Solar Battery 100kwh 50kw Indoor Lithium Battery System Bess 100kwh Energy Storage Battery Cabinet for Industrial

Send Inquiry

Product Description

100kwh + 55kw System Specification
Model	IYP-B100-55H3-75M2-HX1
Battery
Battery Type	LiFePO4 Battery
Rated Energy	100kWh
PV (Solar Input)
Max. Power	75kW
Max. PV Voltage	850Vdc
MPPT Voltage Range	200-800Vdc
Max. PV Current	60A+60A
MPPT Channels	2
AC (On-grid)
Rated Power	55kW
AC Voltage	400Vac/230Vac (L1/L2/L3/N/PE)
Rated Frequency	50Hz/60Hz
Max. AC Current	80A
AC (Off-grid)
Rated Power	50kW
Switching Time	<10ms
Parallel Number	Up to 3
General Parameters
Diesel Generator Port	Yes
Communication Type	RS485/Wifi
IP Grade	IP54
Fire Protection System	Yes
Operating Temperature	-10°C~50°C
Size	740×1170×2060mm
Weight	1200kg (Approx)

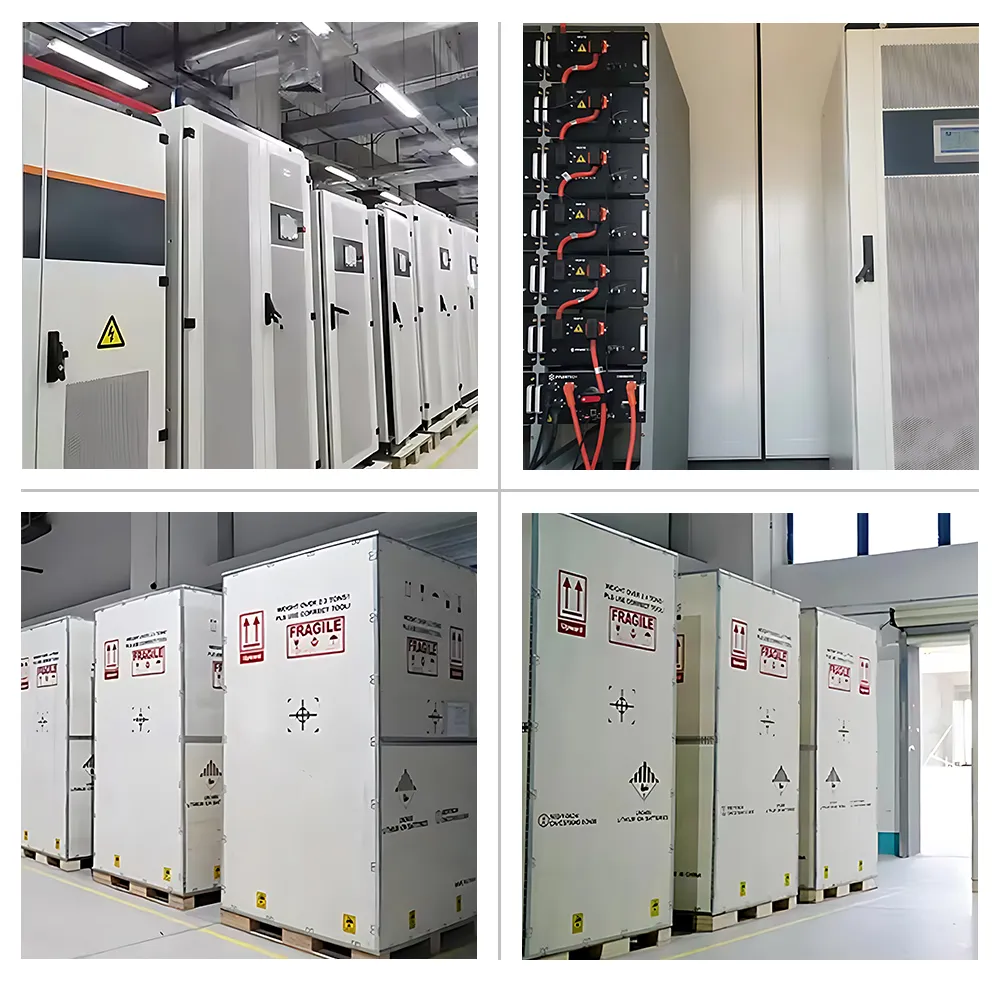

Product Details

Certifications

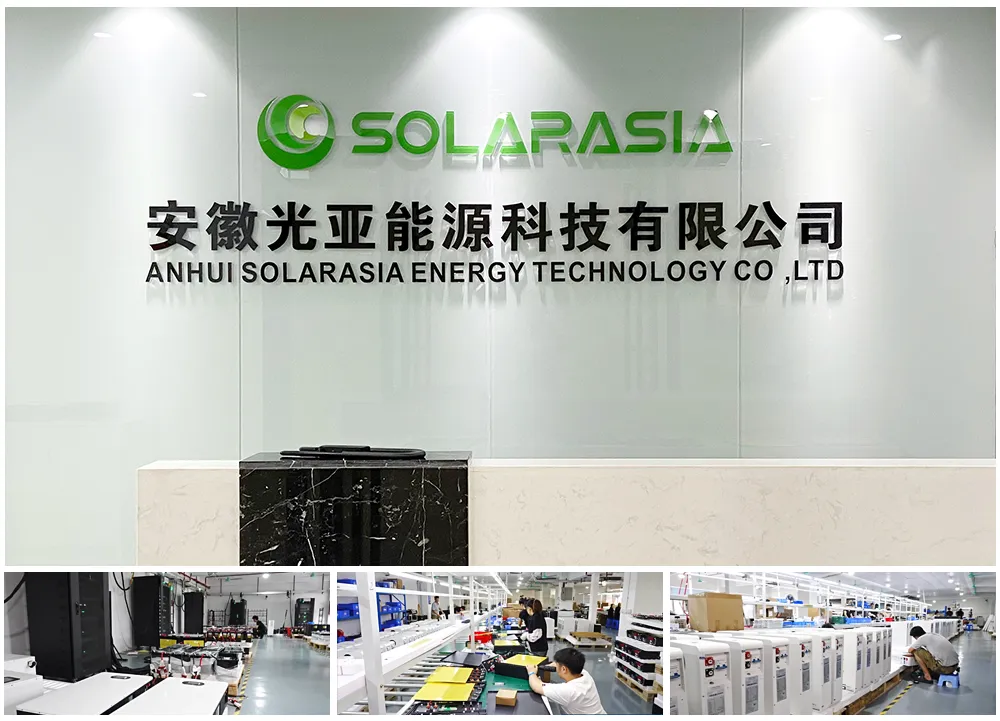

Manufacturing & Facilities

Frequently Asked Questions

How to choose the right panel or energy system?

Please specify your energy demand and application scenario, and our technical team will recommend the most suitable configuration for your needs.

What is the difference between Mono and Poly panels?

Monocrystalline panels offer higher efficiency as they are made from high-grade silicon. Polycrystalline panels are cost-effective with a simpler manufacturing process and less silicon waste.

What is the estimated delivery time?

Typically, sample orders take 7 days, while bulk orders are processed and delivered within approximately 15 days.

What kind of warranty is provided for the solar components?

Generally, solar panels come with a 10-year standard warranty and a 25-year linear output power warranty.

How do you ensure professional technical support?

We have a professional engineering team to provide support based on your requirements. We offer rapid online service response to solve technical issues within a short timeframe.

Can the system operate in extreme environments?

Yes, the system is designed with an IP54 grade protection and operates efficiently within a temperature range of -10°C to 50°C.

Product Detail

Solar Energy Storage Battery All in One Solar Battery 100kwh 50kw Indoor Lithium Battery System Bess 100kwh Energy Storage Battery Cabinet for Industrial

Product Description
